Wholesale asa pvc upvc Plastic Synthetic Resin Flat Acoustic Waterproof Roof Tile

Product Overview

This ASA-PVC-UPVC Synthetic Resin Flat Roof Tile is a high-performance, multi-layer composite roofing solution designed for wholesale building material applications. It combines the weather resistance of ASA (Acrylonitrile Styrene Acrylate), the structural integrity of PVC (Polyvinyl Chloride), and the rigidity of UPVC (Unplasticized Polyvinyl Chloride) to deliver superior durability, acoustic insulation, and waterproofing performance .

The product features a flat tile profile that provides a sleek, modern appearance while maintaining excellent structural performance. It is specifically engineered for projects requiring noise reduction, weather protection, and long-term aesthetic retention .

Key Features & Benefits

1. Superior Acoustic Insulation

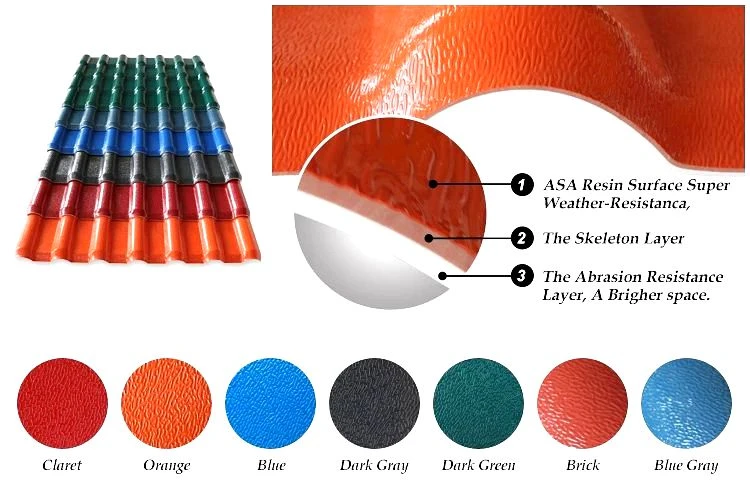

The multi-layer co-extrusion core structure significantly reduces sound transmission from rain, hail, and external noise sources, making it ideal for residential areas, school buildings, and healthcare facilities where quiet environments are essential .

2. Complete waterproofing

With water absorption rate as low as 0.05%, the dense resin surface creates an impermeable barrier that prevents moisture penetration, leaks, and structural damage .

3. Excellent Weather Resistance & UV Protection

The ASA cap layer provides outstanding resistance to UV radiation, extreme temperatures, humidity, and physical impacts. Independent testing confirms color stability with ΔE value ≤ 2.22 after 10,000 hours of artificial accelerated aging .

4. Chemical & Corrosion Resistance

Superior resistance to acid, alkali, salt, and other corrosive chemicals makes this tile particularly suitable for :

Chemical plants

Coastal areas with salt spray corrosion

Regions with acid rain

Agricultural and industrial buildings

5. Fire Resistance

Classified as B1 flame retardant with an oxygen index of 40% , meeting national fire safety standards for building materials .

6. Self-Cleaning Surface

The smooth, dense surface exhibits the "lotus leaf effect" – dirt and dust do not adhere easily, and rainfall naturally cleans the roof surface, maintaining its original appearance without staining .

7. Thermal Insulation

Provides effective heat insulation, keeping interior temperatures 4-6°C cooler than outside during summer months while retaining warmth in winter, reducing energy costs .

8. Impact Resistance

Withstands drops of 1kg steel ball from 1.5m height without cracking. Flexural load capacity reaches 800N with no crack formation .

9. Lightweight & Easy Installation

Weight range of 3.4–6.0 kg/m² depending on thickness :

Lower structural load requirements

Faster installation with reduced labor costs

Easy handling and transport
