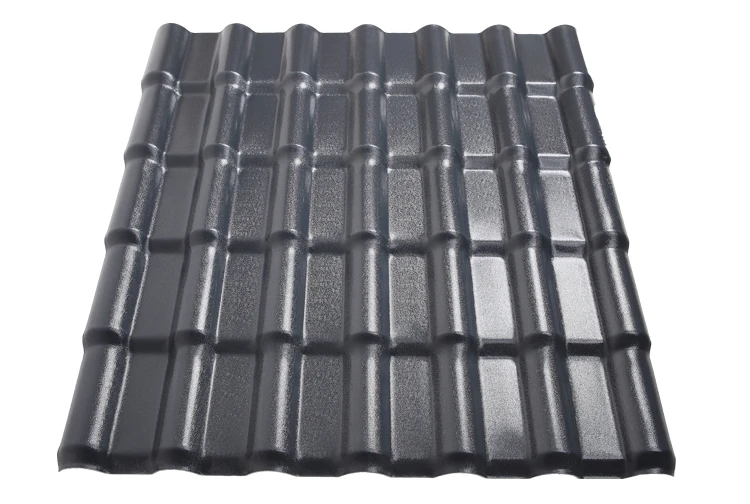

High weather resistant ASA coated synthetic resin roof tile

Product Name: Synthetic Resin Roof Tile

Place of Origin: Foshan city, Guangdong province, China(Mainland)

Guarantee: 25 years

Certification: ISO9001 / SGS / CE

Delivery Time: 1x20GP for 6 days, 1x40GP for 7 days

Material: Acrylonitrile Styrene acrylate copolymer, Polyvinyl chloride, Calcium powder, other chemical materials

Get Quote

Product Details

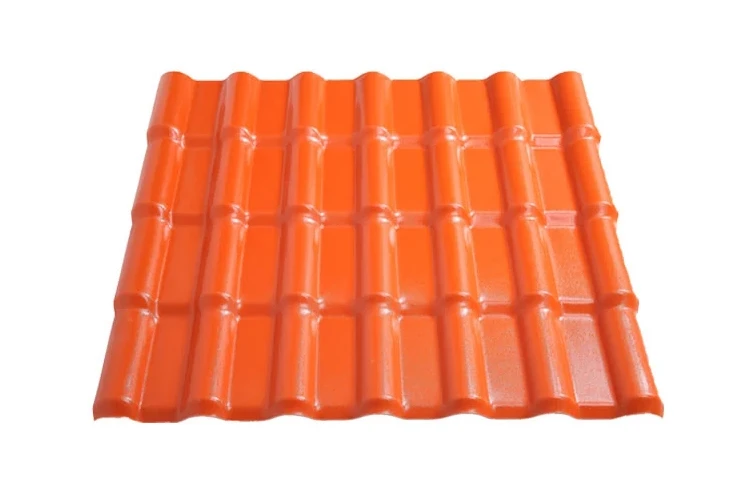

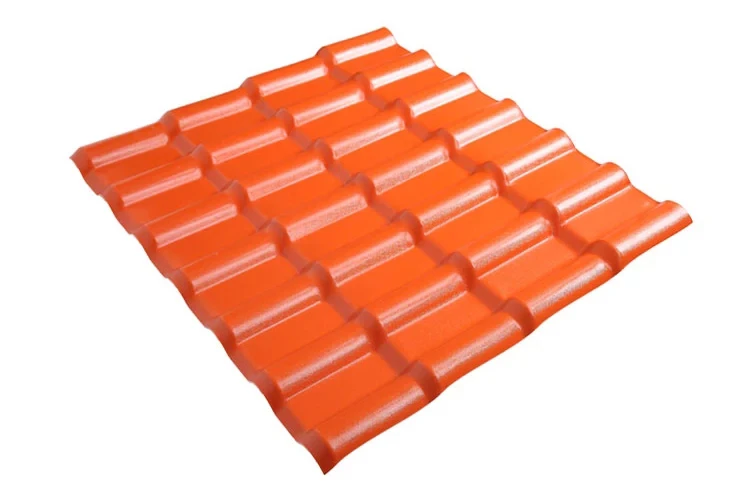

High Weather Resistant ASA Coated Synthetic Resin Roof Tile

Product Overview

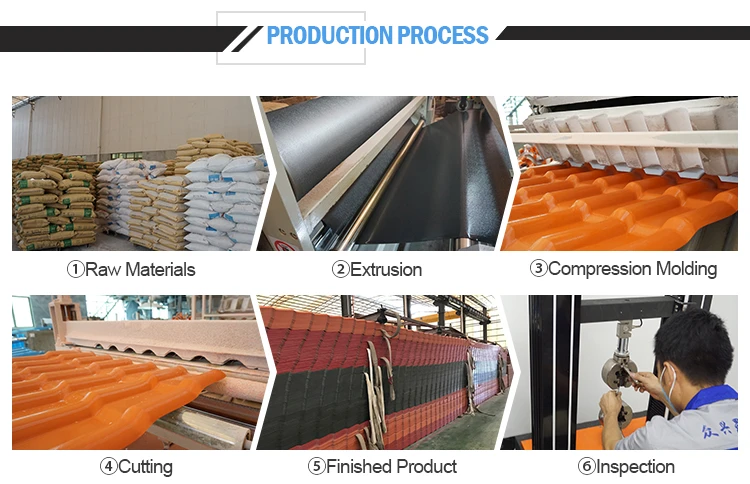

Discover the ultimate roofing solution with our High Weather Resistant ASA Coated Synthetic Resin Roof Tile. Engineered using advanced co-extrusion technology, this innovative roofing material combines a high-performance ASA (Acrylonitrile Styrene Acrylate) surface layer with a durable PVC (polyvinyl chloride) resin core . The result is a lightweight, durable, and aesthetically superior tile that outperforms traditional materials like clay, concrete, and metal in extreme weather conditions. Ideal for residential villas, commercial buildings, and renovation projects, this tile delivers long-lasting protection and timeless beauty

Product Name	Spanish Style ASA Roof Tile
Brand	NANXING
Place of Origin	Foshan city,Guangdong province,China(Mainland)
Material	Acrylonitrile Styrene acrylate copolymer,Polyvinyl chloride, Calcium powder,other chemical materials
Guarantee	25 years

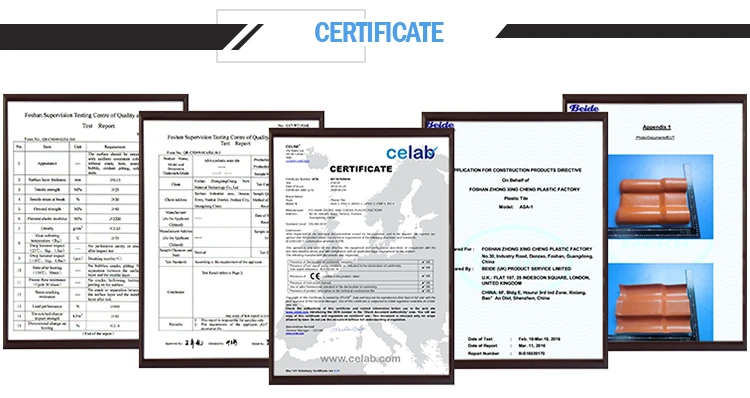

Certification	ISO9001 / SGS / CE / Test Report
Minimum Order Quantity	100 square meter
Delivery Time	1x20GP for 6 days,1x40GP for 7 days
Supply Ability	We have 8 produce lines,about 13500 square meter every day
Payment Terms	T/T , firstly pay 30% deposit,before loading container pay rest of payment
Shipping	Full Container Load (FCL) Service,We do it by myself. Less than Container Load (LCL) Service,We find our agents to do it.
Package	Pallet or PE bag
Port	Guangzhou / Shenzhen / Foshan

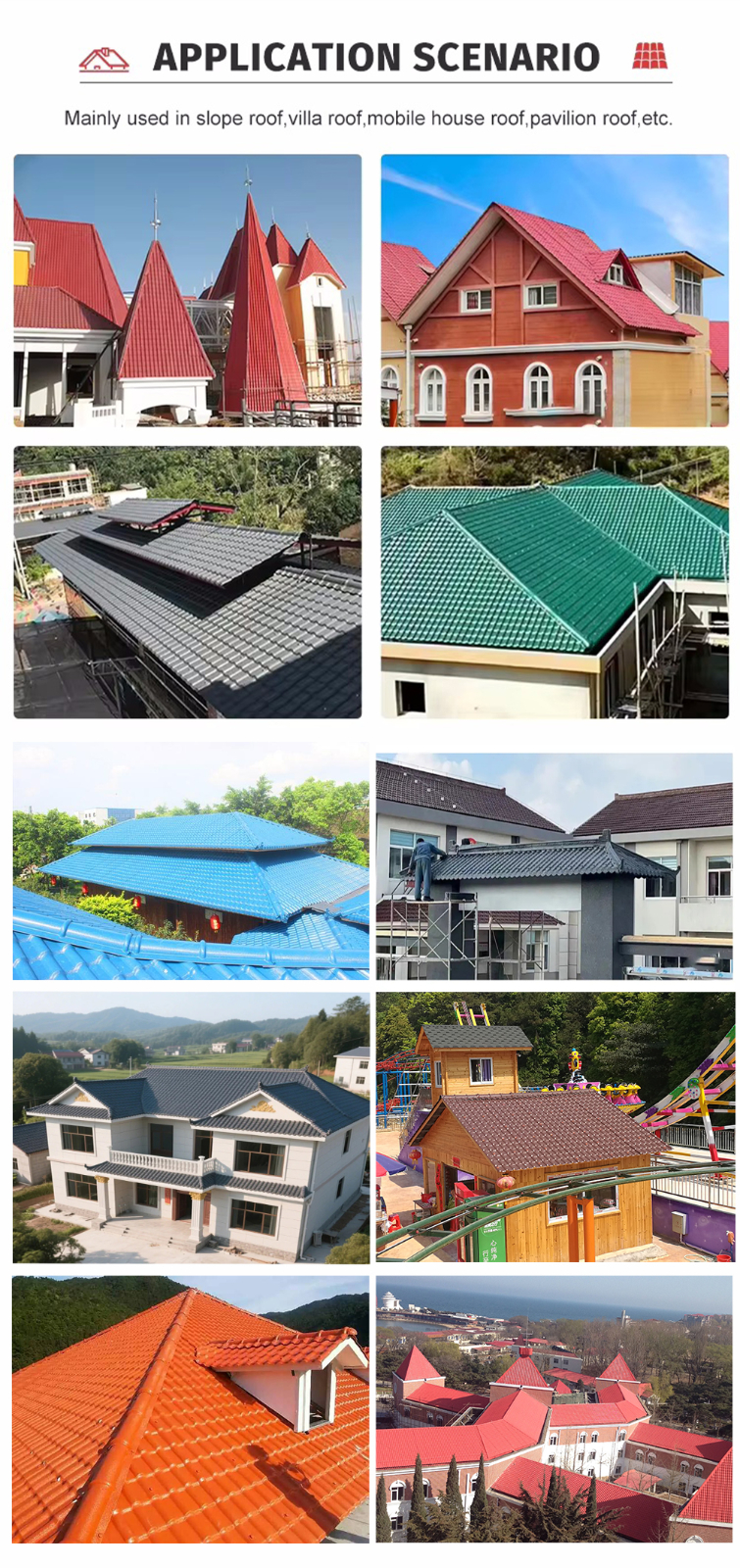

Application	Villa roofing,House roofing,Garden,Grange,Container house, Flat to Slope Project,Etc

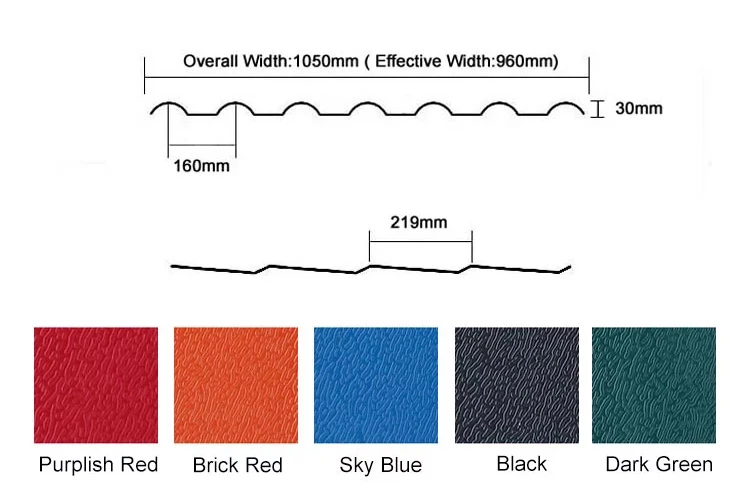

Model Number	#1050-160-30
Type	Spanish Style
Overall Width	1050mm
Effective Width	960mm
Thickness	2.3mm / 2.5mm / 2.8mm / 3.0mm
Length	Must be a multiple of section

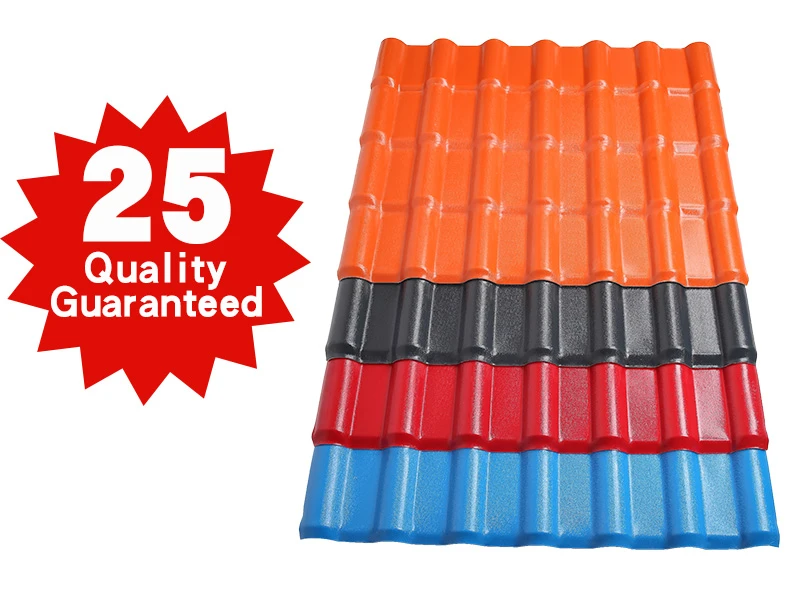

Color	Orange / Red / Grey / Sky blue / Dark green
Wave Spacing	160mm
Wave Height	30mm
Section Length	219mm

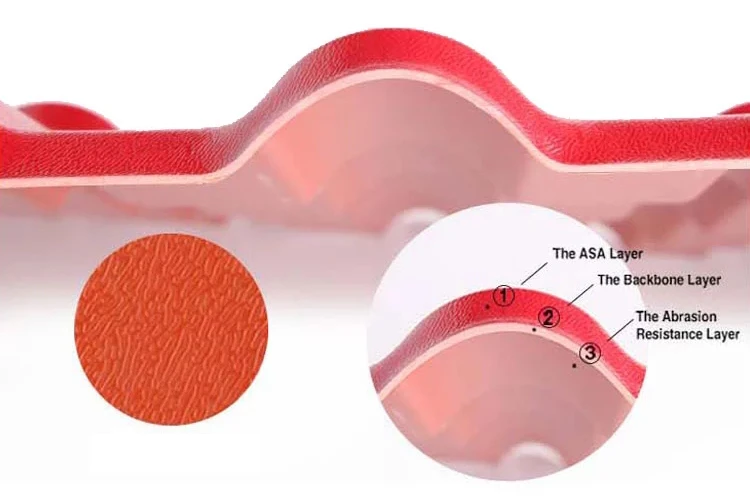

Structure
Surface:Imported ASA raw materials from the world's top 500 GE company,Super weather resistance, truly 10 years don,t have color fading.The standard is that the thickness of the surface reaches 0.15mm,We can reach 0.15-0.18mm.

Medium:The material is Polyvinyl chloride and Calcium powder,the proportion is 1:1.This is the best ratio after many trials.This ratio guarantees the strength and toughness of the product.

Bottom:The important material also is Polyvinyl chloride and Calcium powder,but add other chemical materials.We are make the same color as the surface color and white color.Gloss of products is best in the industry.

Feature
• Long-lasting Color (at least 10 years)
• The product features ultra durability in natural environment.Even under tough conditions of exposure to UV,high temperature and freezing coldness,it still keeps stable color.

• Excllent Anti-corrosion performance
• Synthetic Resin Tile can resist longterm acid ,alkali and salt corrosion ,etc.Tests have proved that there would be no chemical reaction after soaking in salt and alikali and various acid under 60% .It is ideal for application in areas where acid rain is common.

• Good Waterproofing Performance
• Synthetic Resin Tile selects highly weater-resistant resin,which is dense and absorbing no water,with no pore penetration problem.The product is 45% wider than traditional tiles with less roof contact,so synthetic resin,s waterproof performance has greatly increased than traditional tiles.

• Strong Fire Resistance
• Belonging flame retardant material,with fire resistance ≥ B1 as tested by national authoritative departments according to GBB8624-2006 standard.

• Excellent Heat Insulating Property
The heat conductivity coefficient is 0.325w/m.k,about 1/300 of clay tile ,1/50 of cement tile,and 1/2000 of thick color steel tile.Therefore without condidering ading heat-preserving layer ,the heat insulation and heat preservation of synthetic resin tile can still be optimized.

• Good sound insulation
Tests have proved that synthetic resin tiles have excellent noise absorption function when suffered heavy rains and strong winds.

Project Case Show
